| ブランド名: | EMT |
| MOQ: | 交渉可能 |
| 価格: | negotiable |
| 支払条件: | T/T、ウェスタン・ユニオン |
| 供給能力: | 50000PCS /Month |
Quick Injection Molding Equipment 8000kN MG-800 Thixomolding Aluminum

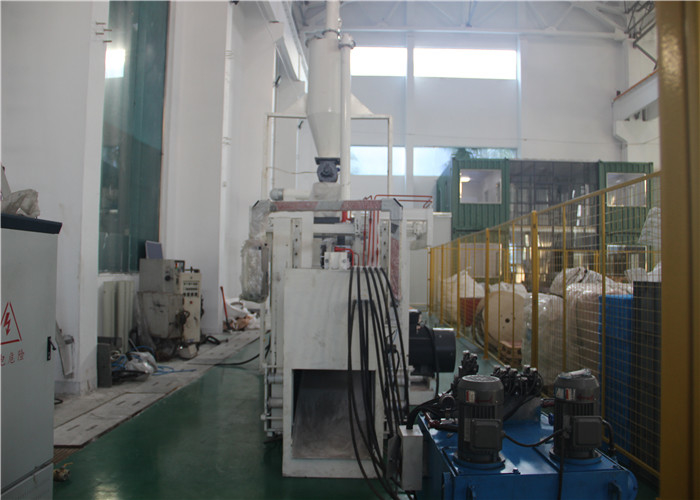

Mg-800 magnesium alloy semi-solid injection molding machine
Technical parameters
| No. | Description | Unit | MG-800 |
| I. Mold locking | |||
| 1 | Mold locking force | kN | 8000 |
| 2 | Mold lock stroke | mm | 800 |
| 3 | Mold thickness (minimum to maximum) | mm | 380-1000 |
| 4 | Clamping plate dimension (horizontal × vertical) | mm | 1470x1480 |
| 5 | Column spacing (horizontal × vertical) | mm | 940×940 |
| 6 | Way of mold installation | T-groove way | |
| II. Injection | |||
| 1 | Screw diameter | mm | 92 |
| 2 | Injection pressure | MPa | 105 |
| 3 | Theoretical injection volume | cm³ | 1994 |
| 4 | Theoretical injection mass | g | 2911 |
| 5 | Theoretical injection rate | cm³∕s | 30578 |
| 6 | Screw’s maximum injection speed | m∕s | 5 |
| 7 | Screw’s rotation speed | r∕min | 10-300 |
| 8 | Injection stroke | mm | 300 |
| 9 | Injection nozzle dimension | mm | φ20×R35 |
| 10 | Injection nozzle inlet | mm | 75 |
| 11 | Injection nozzle contact force | kN | 480 |
| 12 | Injection device position | mm | 0,-175 |
| I. Others | |||
| 1 | Systematic operating pressure | MPa | 16 |
| 2 | Ejection force | kN | 250 |
| 3 | Ejection stroke | mm | 150 |
| 4 | Electric motor power | kW | 55 |
| 5 | Heater’s output power | kW | 50 |
| 6 | Melting servo motor power | kW | 42 |
| 7 | Total electric capacity | kW | 150 |
| 8 | Oil tank capacity | L | 1000 |
| 9 | Machine weight | kg | 43000 |
| 10 | Machine’s overall dimension (L×W×H) | m | 10.5x2.3x3.3 |
Advantage:
FAQ:
1. Q:Are you a factory or a trading company?
A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.
2. Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control.
3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?
A: Yes, with written standard procedures.
4. Q: Is there a procedure to conduct random product inspections after final packaging?
A: Yes, with clear standard and written inspection records.
5. Q: How can I get a quotation?
A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)
6. Q: What is your payment terms?
A: T/T, Western Union, etc.
